Start here. Straight-wall tumblers, Polar Camel water bottles, Hogg straight-walls, basic insulated bottles, generic stainless drinkware, are the easiest production piece on a CO2 laser. One diameter, one rotary calibration, no taper compensation. Master this workflow first, then graduate to tapered Yetis and Stanleys.
Click a thumbnail to view full size · 1 & 2 to be added

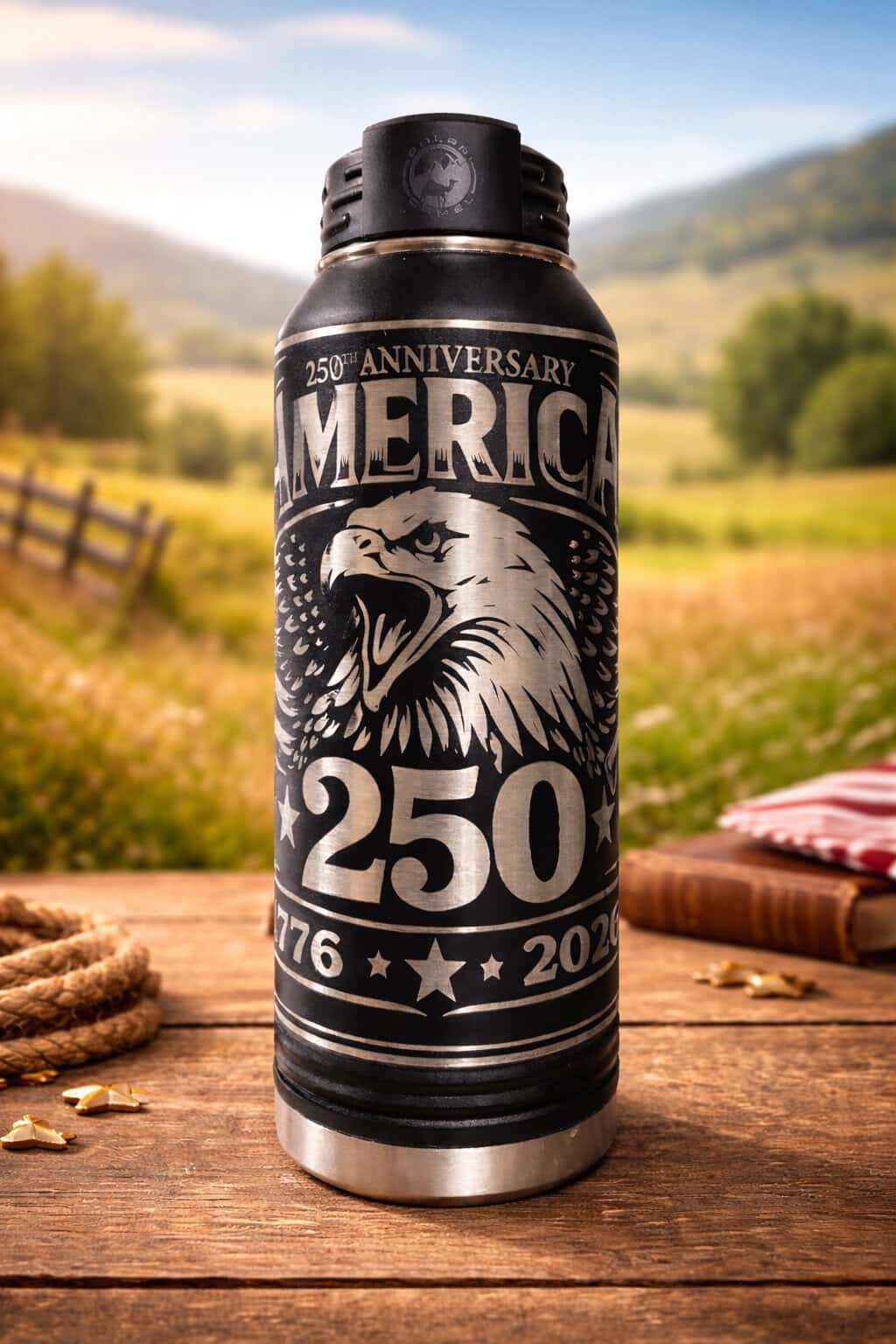

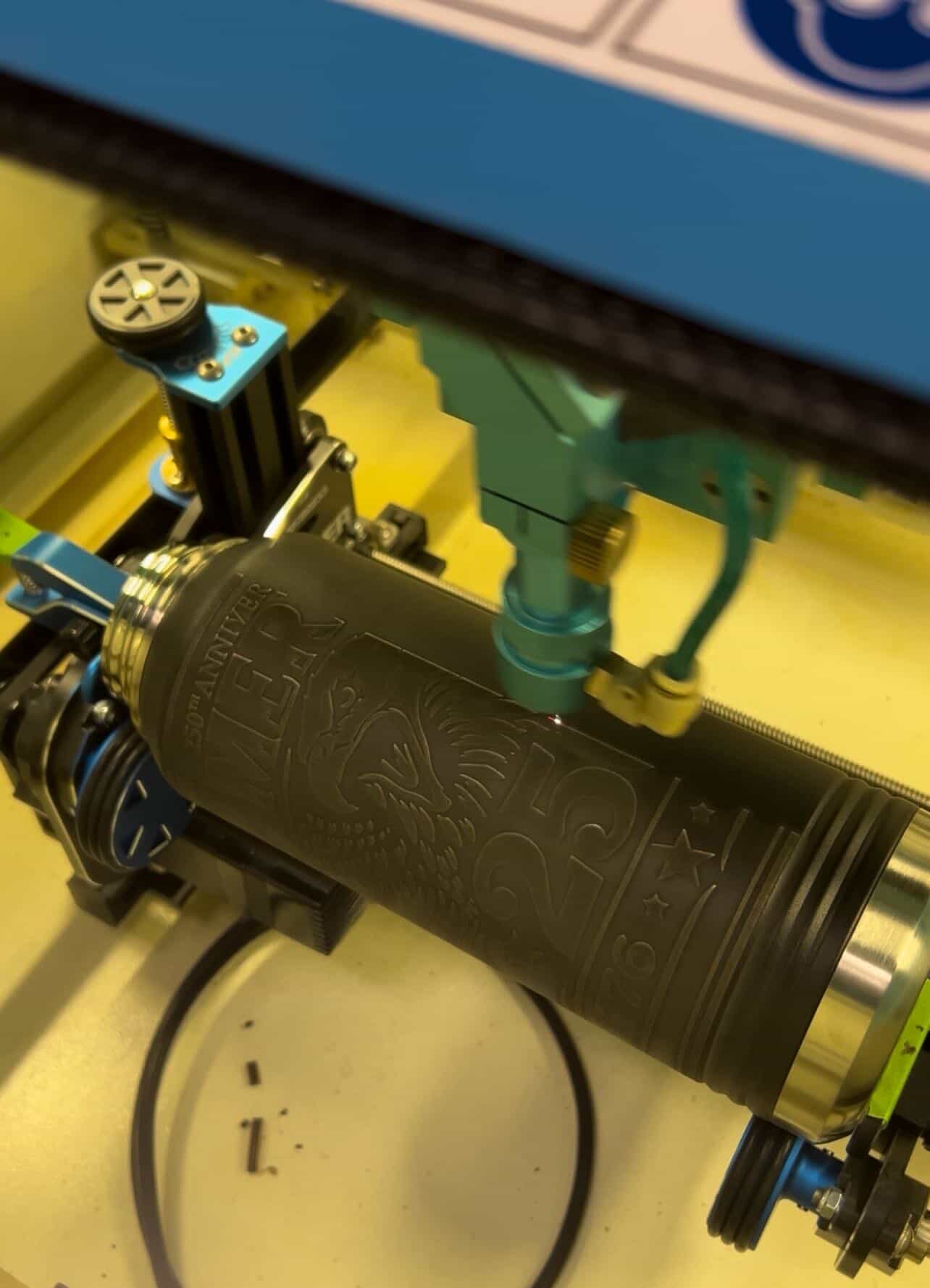

Photos and video courtesy of @craftycopwoodworks.
Why start with straight-wall (and not tapered)
| Straight-wall | Tapered | |
|---|---|---|
| Examples | Polar Camel bottles, Hogg straight-walls, generic insulated drinkware | Yeti Rambler, Stanley Quencher, RTIC, Hydro Flask |
| Diameter | One number, top = bottom | Two numbers, top ≠ bottom |
| Rotary setup | Single roller calibration, done | Calibrate to average diameter, then compensate |
| Design distortion | None: wraps cleanly | Stretches at wide end without compensation |
| Focus across surface | Constant Z if rollers are level | Drifts as the taper rotates under the head |
| Software work | Lay out the design and run | Pre-distort in Illustrator OR use Lightburn taper rotary |
| Skill level | Beginner: first production piece you can sell | Intermediate-to-advanced |
| Profit per piece | $15-30 retail on a $4-7 blank | $25-50 retail on a $10-25 blank |
The full workflow
- Pick a blank. Polar Camel water bottles, sport bottles, mugs, or pints are the workhorse, powder-coated stainless, consistent factory finish, roughly $4-9 wholesale via JDS Industries (varies by size, small mugs/pints toward the low end, larger bottles/tumblers toward the high end). See sourcing list below. Verify current pricing at JDS Industries for your specific SKU.
- Mask the engrave area. Oramask 813 (removable laser mask, sticks better than standard masking tape and conforms to curves) over where the design will sit. Catches the vaporized powder coat dust so the finish stays clean. Peel after engraving.
- Mount on the rotary. Roller rotary is fine for straight-walls, just place the bottle on the rollers, let gravity hold it. No shimming, no leveling math required.
- Calibrate the rotary in Lightburn. Tools → Rotary Setup → Roller. Enter the rotary's steps per rotation (printed on the rotary or in its manual), the rotary's roller diameter, AND the bottle's object diameter (measure with calipers). Lightburn uses both diameters to calculate the gear ratio. Test 360° rotation to confirm it returns home before running anything on a real piece.
- Lay out the design at the bottle's circumference width. For a 73mm-diameter bottle: circumference = π × 73 ≈ 229mm wide design space. Don't fill the full wrap, leave a 5-10mm "seam" where the design ends meet so misalignment doesn't show.
- Focus on the bottle's surface: the highest point on the cylinder where the laser will fire. Use your auto-focus or a focus block.
- Run a test on a sacrificial blank first. Always. Powder-coat thickness varies by manufacturer batch.
- Run the production piece. Peel the mask while still warm, easier release.
- Wipe with a microfiber + isopropyl alcohol. Removes any residual ash. The stainless reveal pops.
- For premium-finish work, follow the IPA wipe with Enduramark BLU Powder Coating Residue Cleaner, pulls the chalky burnt residue at the engrave edges that IPA alone leaves behind. Wipe on, wait 30 seconds, wipe off. Crisp reveal instead of hazy.
Settings: Polar Camel-style powder-coated stainless
Starting points for a 35-50W CO2 RF tube with 2" lens. Verify on a sample blank first.
| Param | Value | Notes |
|---|---|---|
| Image mode | Threshold (raster) or Fill (vector) | Threshold for crisp logos converted from raster. Fill for native vector designs. Grayscale only if doing a photo wrap. |
| Speed | 350-450 mm/s | Faster = lighter reveal. Slower = deeper, more contrast. |
| Power | 25-35% | Just enough to vaporize the powder coat. Too high = heat-tints the stainless underneath (rainbow / iridescent appearance). |
| Line interval | 0.10 mm | Tighter (0.08mm) for fine detail; looser (0.12mm) for fast batch work. |
| DPI equivalent | ~254 DPI | 0.10mm interval = 254 DPI. Sweet spot for powder-coat reveal. |
| Air assist | Minimal, light flow | Just enough to keep smoke off the lens. Too much air will lift the mask edge mid-engrave. |
| Passes | 1 | One pass is plenty. Multi-pass risks heat-tinting the stainless and creating a halo. |
Settings by drinkware coating type
| Coating | Speed | Power | Notes |
|---|---|---|---|
| Powder-coated stainless (Polar Camel, Hogg, generic) | 350-450 mm/s | 25-35% | Reveals stainless. Mask before run. |
| Anodized aluminum (sport bottles, anodized water bottles) | 600-800 mm/s | 20-25% | Reveals bare aluminum. Watch for inconsistent ano thickness across batches. |
| Ceramic-coated bottles | 300-350 mm/s | 35-45% | Ceramic is harder than powder. Slower + more power. |
| Bare stainless (uncoated) | 800-1000 mm/s | 15-20% | Surface frost only. CO2 doesn't deep-engrave stainless. Limited contrast, fiber laser is far better here, or use CerMark/TherMark spray for a black mark. |
| Enamel-coated | 400 mm/s | 30% | Similar to powder. Test first, formulations vary by brand. |
Common straight-wall blanks (sourcing)
- Polar Camel: water bottles (20oz, 25oz, 32oz), sport bottles, pints, mugs, wine glasses. JDS Industries is the primary wholesale source. Consistent powder coat, multiple colors.
- Hogg: straight-wall tumblers and bottles. Wholesale via Hogg Outfitters or various Etsy/Amazon resellers. Slightly thicker powder than Polar Camel.
- SimpleModern: straight-wall water bottles available in bulk. Good factory finish.
- Generic Amazon stainless bottles: cheap (~$3) but powder-coat thickness wildly inconsistent batch-to-batch. Test EVERY new batch.
- Frost Buddy: universal can coolers. Straight-wall, perfect for engraving, popular on Etsy.
To mask or not to mask
- Mask: always for powder-coated bottles where the customer cares about cosmetics. Catches dust, prevents re-deposit, makes the reveal pop.
- Skip mask: for high-volume batch work where you wipe-clean per piece, saves 30 seconds per bottle. Quality is slightly lower but acceptable for bulk corporate orders.
- Best masking material: Oramask 813 (removable laser mask, available in 12"+ rolls, community standard for engraving) conforms to curves and resists lifting better than standard masking tape. 3M ScotchBlue 2090 is the budget fallback. Wide adhesive kraft mask rolls work well for production-volume work. NEVER use packing tape, duct tape, or any aggressive adhesive, they lift the powder.
Common pitfalls
- Engrave starts misaligned with the seam. The rotary has to "home" before run. Verify the bottle is at the right rotation start position. Many controllers reset rotation on start, but some don't.
- Halo of partly-removed coating around the design. Line interval too coarse. Drop to 0.08mm.
- Bottle slips on the rollers. Slick metal bottoms wobble. Wrap a silicone band around one of the rollers, or move the bottle slightly off-center so the weight pins it.
- Inconsistent reveal across bottles in a batch. Powder-coat thickness varies. ALWAYS test the first bottle of every new batch.
- Mask peels mid-engrave. Air assist too high or tape too low-tack. Drop air or upgrade tape.
- Color shift (rainbow) on the engrave. Power too high, burning into the stainless. Drop 5%.
- Engrave looks gray instead of bright stainless. Power too low or speed too high, not fully removing the powder. Bump power 5%.
The "10-bottle starter kit" recommendation
Buy 10 cheap Polar Camel-equivalent water bottles ($40-50 total), masking tape, a basic roller rotary ($150-300), and run a test grid for power/speed across all 10. By bottle 5 you'll know your settings. By bottle 10 you have an Etsy listing with 4 finished examples. This is the lowest-friction first production piece on a CO2 laser.
Next step: tapered tumblers
Once straight-wall is reliable, the next module covers tapered tumblers (Yeti, Stanley Quencher, RTIC, Hydro Flask). Same coating, different geometry, the workflow adds taper compensation, focus management, and shimming. See Tapered Tumblers (Advanced) below.
