Tapered Tumblers (Advanced)

Prerequisite: the Straight-Wall Tumblers & Bottles module above. Once you have straight-wall reliable, tapered drinkware is the next step. Real-world tumblers like Yetis, Stanleys, RTICs, and Hydro Flasks are TAPERED. Without compensation, your design comes out smeared at one end and compressed at the other. This module covers the geometry, the Lightburn corrections, and the settings to wrap full-360° designs cleanly on tapered drinkware.

Video courtesy of @barkingbladedesignco.

The taper problem (in one diagram's worth of words)

A roller rotary turns the tumbler at a constant rotational speed. The laser scans at a constant linear speed. On a perfect cylinder, every point on the tumbler surface moves the same distance per rotation, so 360° = a fixed wrap circumference, and your design wraps cleanly.

On a tapered tumbler (top diameter ≠ bottom diameter), the wider end has MORE circumference per rotation than the narrow end. The same number of rotations covers different distances at top vs bottom. Without compensation, your design stretches at the wide end and compresses at the narrow end. Letters lean. Logos squish.

Step 1: Know what your rotary can do (this changes everything)

Before reaching for shims or distortion math, check your rotary's hardware capability. Newer rotaries from major manufacturers handle tapered drinkware natively via mechanical tilt or auto-leveling, no shim, no pre-distortion needed for many tapers. Check your rotary's documentation for tilt or "tapered tumbler" support before assuming you need to compensate manually.

Rotary type	Tapered tumbler capability	Typical examples
Tilt / "3D" / Adjustable-angle roller	Native, the rotary tilts so the engrave surface sits horizontal. Just rotate to the correct angle for your tumbler's taper. No shimming, minimal-to-no design pre-distortion.	Thunder Laser's tapered tumbler rotary, OmTech tilt rotary, xTool RA2 Pro, various aftermarket "3D rotaries"
Chuck rotary with angle adjustment	Native, the chucks themselves can be set to compensate for taper, presenting the engrave surface horizontally.	Higher-end chuck rotaries on Thunder, xTool, and similar
Standard roller (no tilt)	None, every tapered tumbler needs either a shim under the narrow end OR pre-distorted artwork. Only true cylinders engrave correctly out of the box.	Most basic / OEM rotaries; budget rotaries from Amazon; some older rotaries from major brands
Standard chuck rotary (no angle adjust)	Limited, works fine for cylinders. For tapers, you have to pre-distort the design or accept distortion.	Basic chuck rotaries on entry-level lasers

Two strategies if your rotary does NOT have built-in tilt

Strategy 1: Shim the tumbler level

Use a wedge or 3D-printed taper shim under the narrow end so the engrave surface sits HORIZONTAL. Now you're engraving a small flat area at one rotation height, and you avoid the taper entirely because only a thin band is "active" at once. Best for designs that occupy under ~50% of the tumbler height.

1. Measure top and bottom diameters with calipers. Calculate taper angle: arctan((D_top - D_bottom) / (2 × height)).
2. 3D print or laser-cut MDF wedges that sit between the tumbler and the rotary rollers, raising the narrow end so the engrave area becomes parallel to the bed.
3. Refocus on the leveled engrave surface.
4. Run the design as if on a cylinder. The taper effectively disappears because you're working in a thin horizontal band.

Strategy 2, Lightburn's built-in Taper Warp tool (the recommended fix)

Lightburn ships a dedicated Taper Warp tool that compensates for tapered-tumbler distortion automatically, no manual pre-distortion math required. Available since LightBurn 1.5.01 and present in current 2.x releases. This is the cleanest, most-accurate path for full-height wrap designs.

How to use Taper Warp

1. Set up the rotary normally first. In Lightburn, configure the rotary as a Roller and enter the AVERAGE diameter ((D_top + D_bottom) / 2). Confirm 360° rotation returns home.
2. Place your design in the workspace at the size it should appear on the finished tumbler, design at the dimensions you want to see in person, not pre-distorted.
3. Select the artwork you want to compensate (typically all of it).
4. Open the tool: Laser Tools → Taper Warp.
5. Enter the four parameters (verbatim Lightburn field names):
   • Object Top: dropdown: Top / Left / Right. Tells Lightburn which edge of your design corresponds to the wider end of the physical tumbler. For a logo standing upright on a typical top-wider tumbler with the design oriented vertically in Lightburn, this is usually Top.
   • Top Diameter: physical diameter at the wider end of the tumbler (mm).
   • Length: total length / height of the engraved area on the tumbler (mm).
   • Bottom Diameter: physical diameter at the narrower end (mm).
6. Preview in the workspace. The artwork visibly warps to a trapezoid shape (narrower top, wider bottom for a top-wider tumbler), that's exactly what you want, because that pre-distortion will "untwist" as it wraps the taper.
7. Click OK to apply (or Cancel to discard). Taper Warp PERMANENTLY modifies the source artwork, it's not a runtime modifier. Save a backup of the original Lightburn project before applying if you might want to re-edit later.
8. Engrave normally. The warped artwork wraps cleanly on the tumbler.

Limitations of Taper Warp (per Lightburn's docs)

• Operates in millimeters only: convert if your project is set to inches.
• Does not account for laser focal length or laser-to-object distance, focus management is still your job (see Focal Range section below).
• Accuracy is only as good as your measurements: caliper the actual tumbler at top, bottom, and the engrave-area length. Don't rely on advertised dimensions.
• The engrave surface still has to be parallel to the laser bed during engraving: Taper Warp solves the design-distortion problem, but you still need a tilt rotary OR shimming OR a thin-band engrave to keep the surface flat under the laser. Taper Warp + flat surface = the cleanest result.
• Permanent modification: once OK'd, the design IS the warped version. Use Edit → Undo immediately if it's wrong; otherwise reload the original from your saved project.

For the standalone Taper Warp tool reference (every parameter, common mistakes, decision matrix), see Taper Warp Tool. Sources: LightBurn Taper Warp documentation, Full Wrap Tumblers guide.

Strategy 3: Manual pre-distortion in vector software (legacy / fallback)

Before Lightburn 1.5.01 added Taper Warp, the standard path was pre-distorting the design manually in Illustrator/Inkscape/Affinity. Still useful as a fallback if you're on an older Lightburn version, OR if you need fine-grained control over an unusual taper geometry that Taper Warp doesn't handle well.

The math: a roller rotary rotates the tumbler by a fixed angular amount per laser step. At the wider end of the tumbler, more surface arc passes under the laser per step than at the narrower end. So with no compensation, your design stretches at the wider end and compresses at the narrower end. To produce a visually-rectangular result on the finished tumbler, the source design has to be pre-distorted in the OPPOSITE direction.

1. In Lightburn, set rotary type to Roller and enter the AVERAGE diameter ((D_top + D_bottom) / 2). Use the average, engrave error gets split between top and bottom rather than concentrated at one end.
2. Pre-distort the design in your vector tool. Most tumblers are wider at the top, so:
   • Shrink the TOP of the design horizontally by the taper ratio. The compensated source design ends up trapezoid-shaped: narrower at top, wider at bottom.
   • Equivalently: stretch the bottom by the same ratio. The math is the same.
   • Example, Yeti 30oz tumbler, top D=88mm, bottom D=85mm: Taper ratio = 85 / 88 = 0.966 (about 3.4% taper). To compensate using the average diameter (86.5mm): shrink the top of the design by ~1.7% AND stretch the bottom by ~1.7%, OR shrink the top by 3.4% with no bottom change. Either approach yields the same visual result on the tumbler.
3. Engrave normally. The wider-at-the-bottom source artwork "untwists" as it wraps the taper, ending visually rectangular on the finished tumbler.
4. Test on a sample blank first. Draw a known reference (a perfect square or evenly-spaced grid) on top of your real design and engrave a test piece. Measure the engraved square, if it's still trapezoidal, increase the pre-distortion. If it's reverse-trapezoidal (flared the wrong way), you over-corrected.

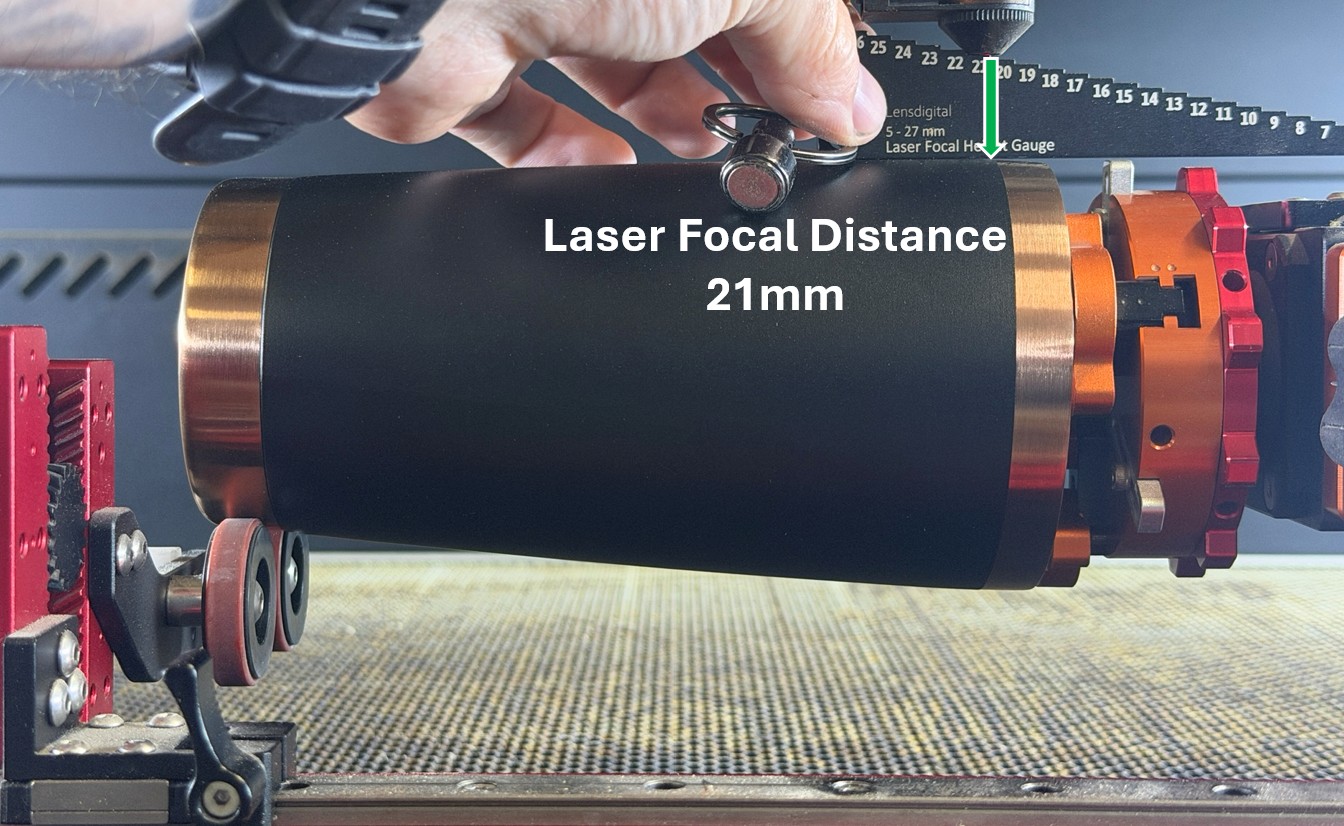

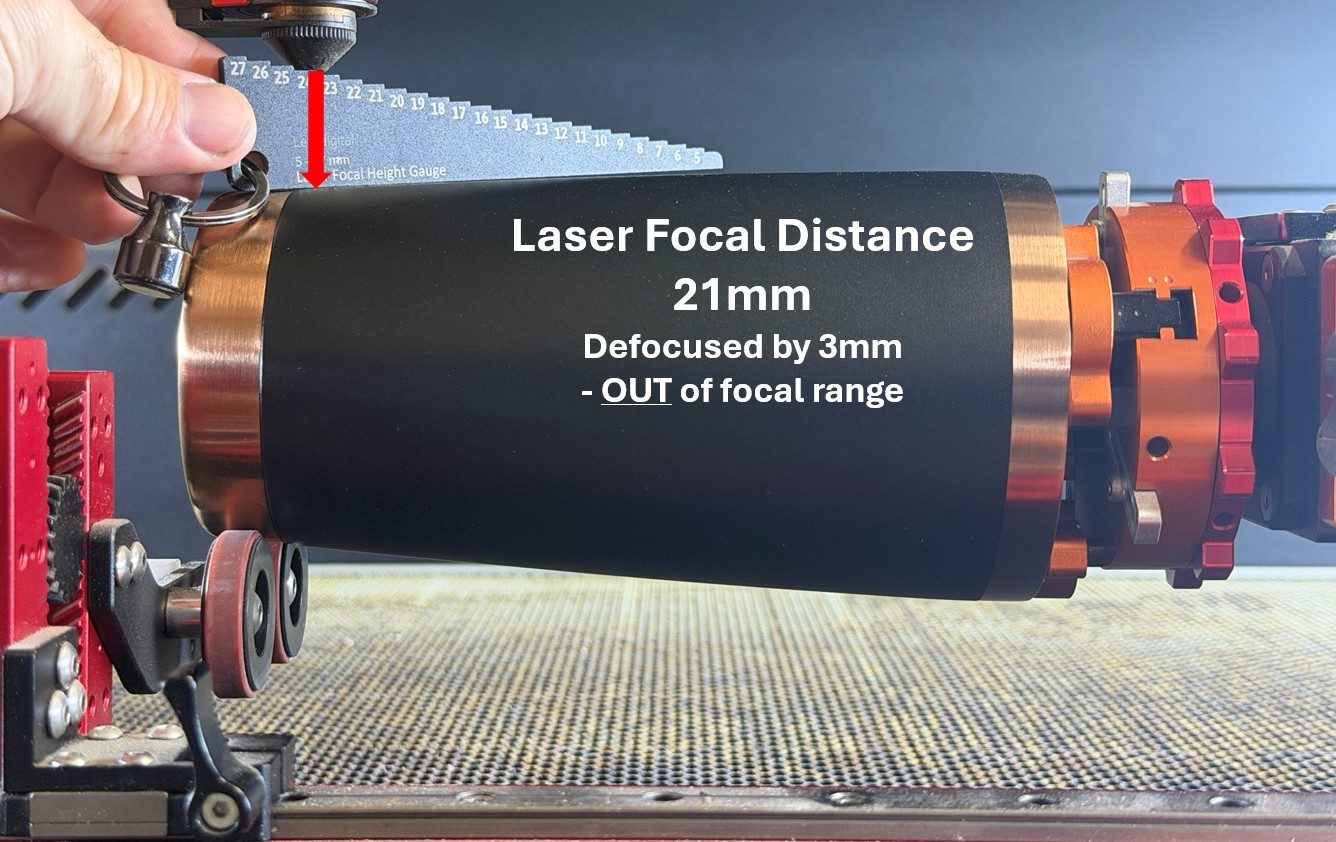

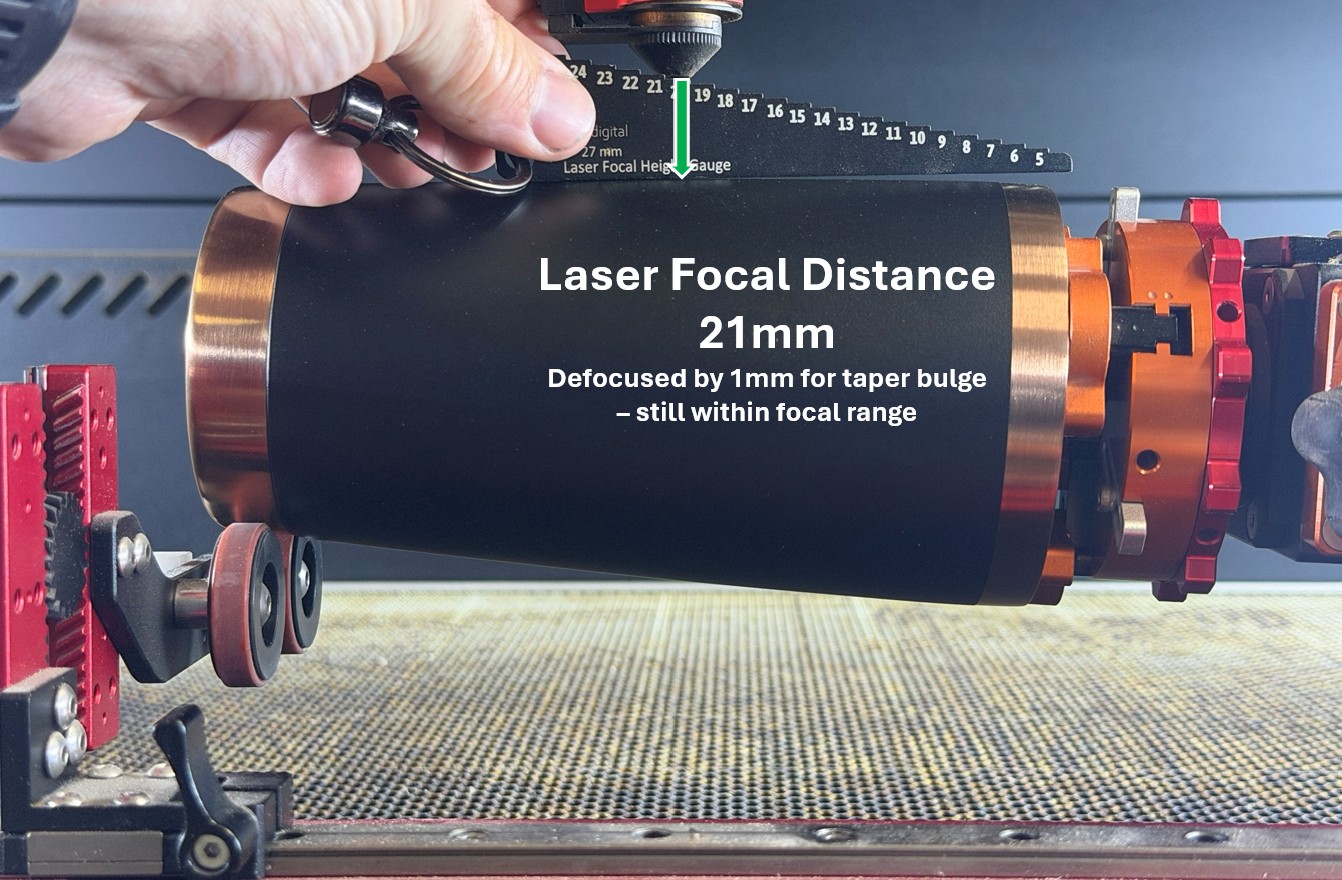

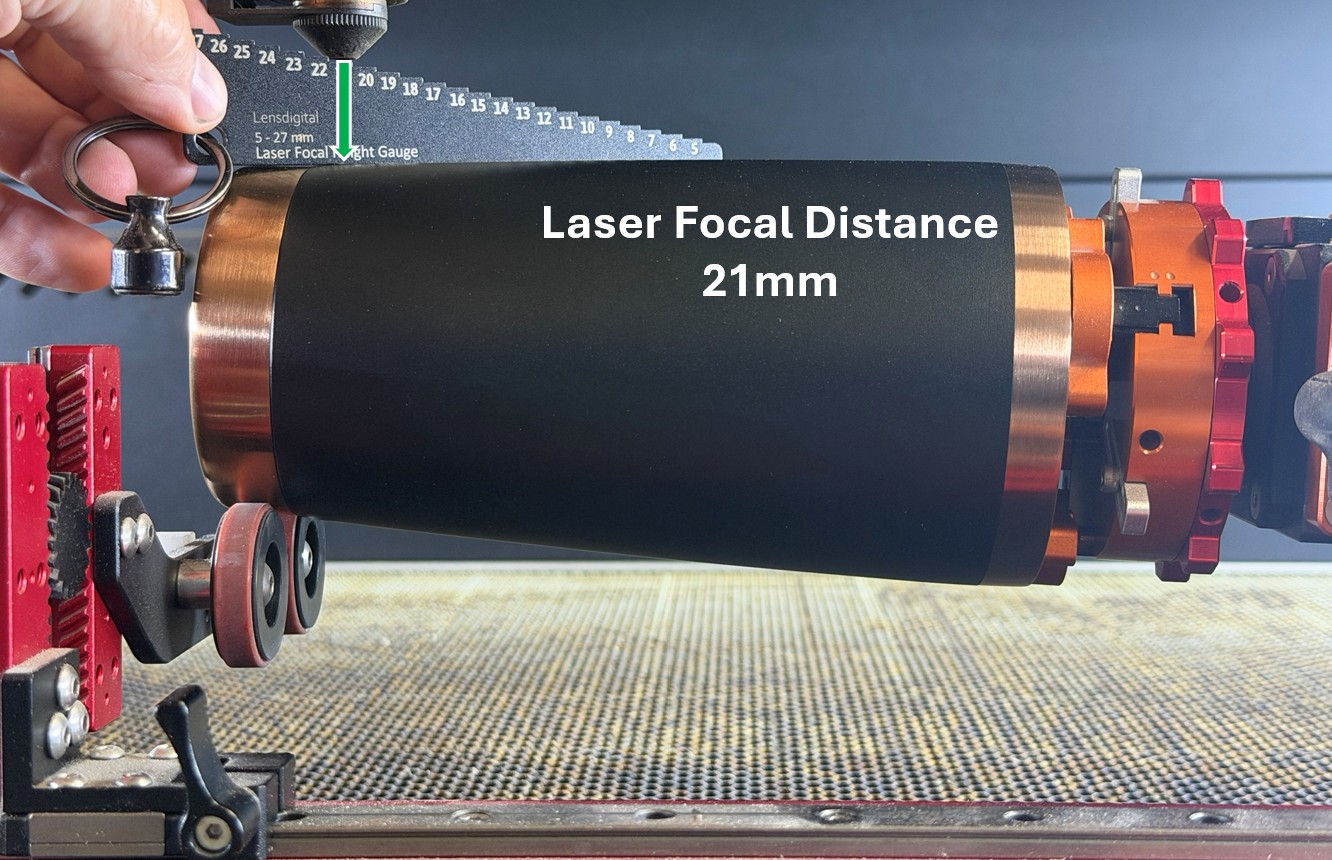

Focal range: what good and bad look like on a tapered tumbler

When the engrave surface is properly within the laser's depth of focus, the powder-coat reveals as bright crisp stainless with clean edges. When the surface drifts out of focus (because the taper carries the engrave point above or below the focal plane mid-job), the reveal goes muddy, softer edges, gray ghosting, inconsistent contrast. The visual difference between in-focus and out-of-focus on a tapered tumbler is dramatic and easy to spot once you know what to look for.

Click a thumbnail to view full size · green arrows mark engraves within the focal range; red marks the out-of-focus example

Focal-range examples courtesy of @barkingbladedesignco.

How to verify focal range on YOUR tumbler before running production

1. Engrave a thin reference line (1mm wide, ~30mm long) from the bottom of your design area to the top of your design area on a sacrificial tumbler. Use the same settings you'd use for the real job.
2. Inspect under daylight LED at a low angle. The reference line should look uniformly bright across its full length. If brightness drops off at one end (or the middle), that's where the engrave surface is leaving the focal plane.
3. Adjust before production: shim the narrow end higher (Strategy 1) until the reference line stays uniform end-to-end, OR refocus mid-job if your design spans more than the depth of focus, OR use a longer focal length lens with deeper DOF (CO2: 4" lens; galvo: 150mm lens) and accept slightly larger spot size.

Settings by drinkware type

Tumbler type	Speed	Power	Line interval	Notes
Powder-coated stainless (Yeti, RTIC)	350-400 mm/s	28-32%	0.10 mm	Reveals stainless under the powder. Mask before run.
Anodized aluminum (Stanley Classic)	600-800 mm/s	20-25%	0.08 mm	Reveals bare aluminum. Watch for inconsistent ano thickness.
Ceramic-coated (newer Yeti, premium tumblers)	300-350 mm/s	35-45%	0.10 mm	Ceramic is harder than powder. Slower + more power.
Bare stainless (CamelBak, generic)	800-1000 mm/s	15-20%	0.08 mm	Surface frost only, CO2 doesn't deep-engrave stainless. Limited contrast.
Enamel-coated (Hydro Flask)	400 mm/s	30%	0.10 mm	Similar to powder coat. Test first, enamel formulations vary.

Rotary types: capability comparison

• Standard roller rotary: tumbler sits on two parallel rollers, turns by friction. Best for true cylinders. $150-300 typical. Limitation: needs shimming or pre-distortion for tapered drinkware; can slip on narrow bases.
• Tilt / "3D" / Adjustable-angle roller: same friction-roller principle but the whole rotary tilts so the engrave surface stays horizontal regardless of taper. Solves the tapered tumbler problem in hardware. Available from Thunder Laser, OmTech, xTool (RA2 Pro), and aftermarket. Pricing varies, typically $250-500 from major brands. This is the right rotary to buy if drinkware is going to be a meaningful part of your business.
• Standard chuck rotary: clamps the tumbler at one or both ends. Best for narrow-base bottles, wine glasses, items with handles. More precise; no slip. $400-800. Setup penalty per part.
• Chuck rotary with angle adjustment: premium chucks on higher-end systems can be set to a taper angle for tapered drinkware. Combines chuck precision with native taper handling.
• For a production drinkware shop: a tilt-capable roller is the single highest-impact upgrade. Add a chuck for wine glasses and odd shapes.

Always verify capabilities against your specific rotary's manual, product lines change generation-to-generation, and the same brand can sell multiple rotary types with different feature sets.

Common pitfalls

• Smearing across the seam: design starts and ends don't quite align. Always design with a 2-3mm "safe zone" gap at the seam, OR design ends that visually merge (gradient, pattern that loops cleanly).
• Inconsistent reveal between tumblers in a batch: powder coat thickness varies by manufacturer batch. Test the FIRST tumbler of every new batch before running a production lot.
• Focus drift on the taper: even with shimming, the focal point drifts as the rotary turns. Refocus mid-job for very tall designs, OR accept a softer engrave at the extremes.
• Tumbler slips on the rollers: silicone bands or rubber roller sleeves fix this. Or switch to chuck rotary for slick-bottom tumblers.
• "Halo" of unengraved coating around the design edge: your line interval is too coarse. Drop to 0.08mm and rerun the test.
